Sharkoon Elite Shark CA700 ATX Open Frame

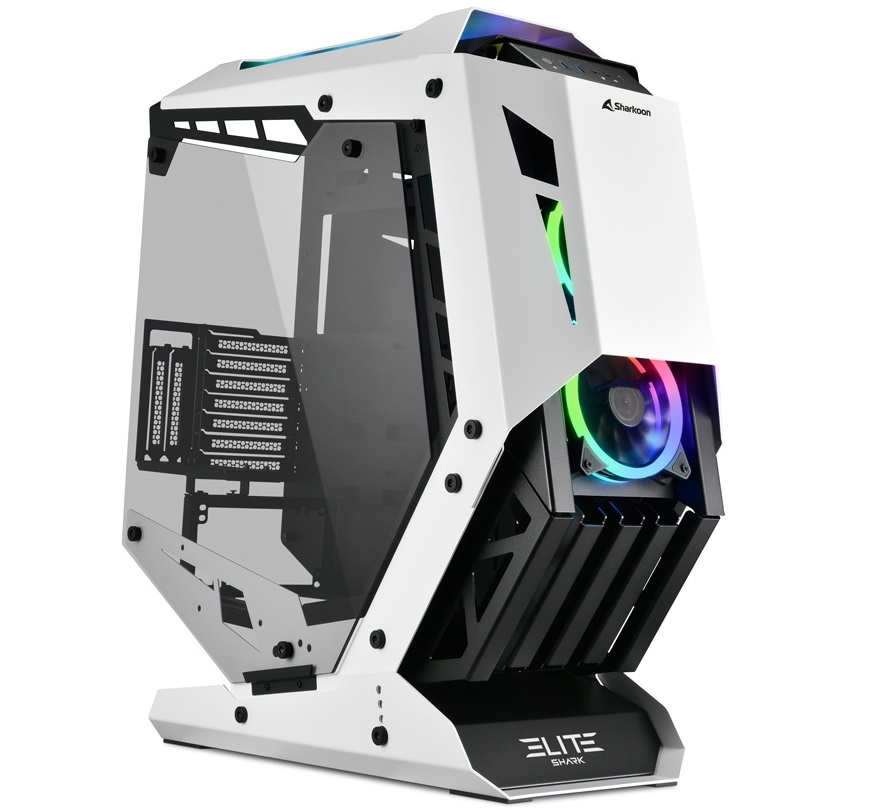

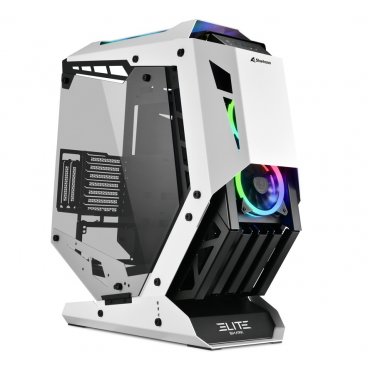

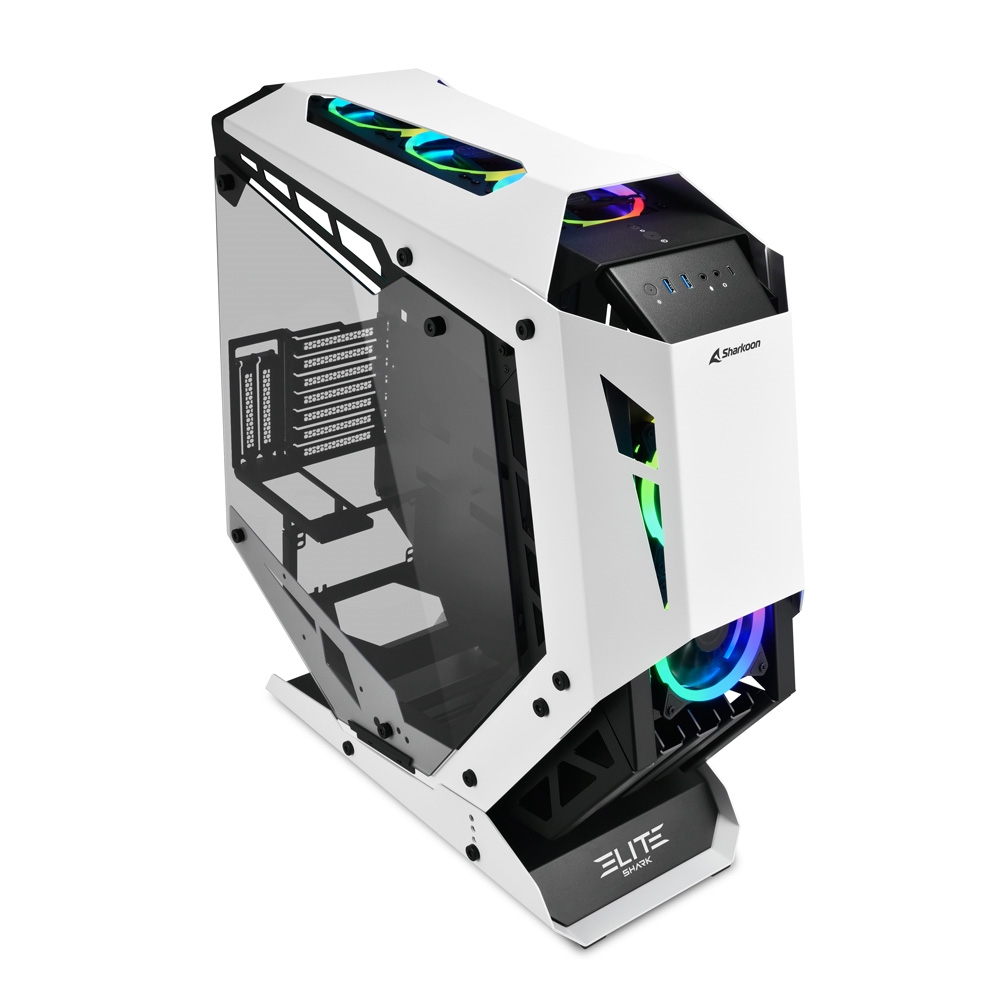

With the ELITE SHARK CA700, Sharkoon presents an impressive premium case. Its striking contours and high-quality workmanship harmonize with the numerous features and the colossal dimensions that all make up the CA700. Up to eight RGB fans and a water-cooling system with two 360 mm radiators can all find room inside the case, and the graphics card can also be positioned vertically. In addition, the case body can be tilted and locked in four positions via its base.

Ideal Cooling Performance. In an elegant design, the ELITE SHARK CA700 has been formed in such a way that there are opportunities from all sides of the case to create an ideal airflow. Even when the system is being used at full capacity, an ideal cooling will always be ensured. There are installation options for up to eight 120 mm RGB LED fans to effectively cool down the installed components. Five fans are already pre-installed for immediate use. Of course, the interior of the ELITE SHARK CA700 can also be water cooled. However, what is special about the case is the possibility of installing two 360 mm radiators at the same time: one in the top of the case and another next to the mainboard. The pump or the reservoir can be attached either upright onto the bottom of the case or onto a removable mounting panel next to the mainboard tray.

Options for an Impressive Illumination. The sheer size of the case allows for a correspondingly open display of the illuminated components. These, along with an extensive water-cooling system, will come brilliantly into their own. If desired, the graphics card can be installed vertically and thus be allowed to shine in all its splendor through the side panel made of tempered glass.

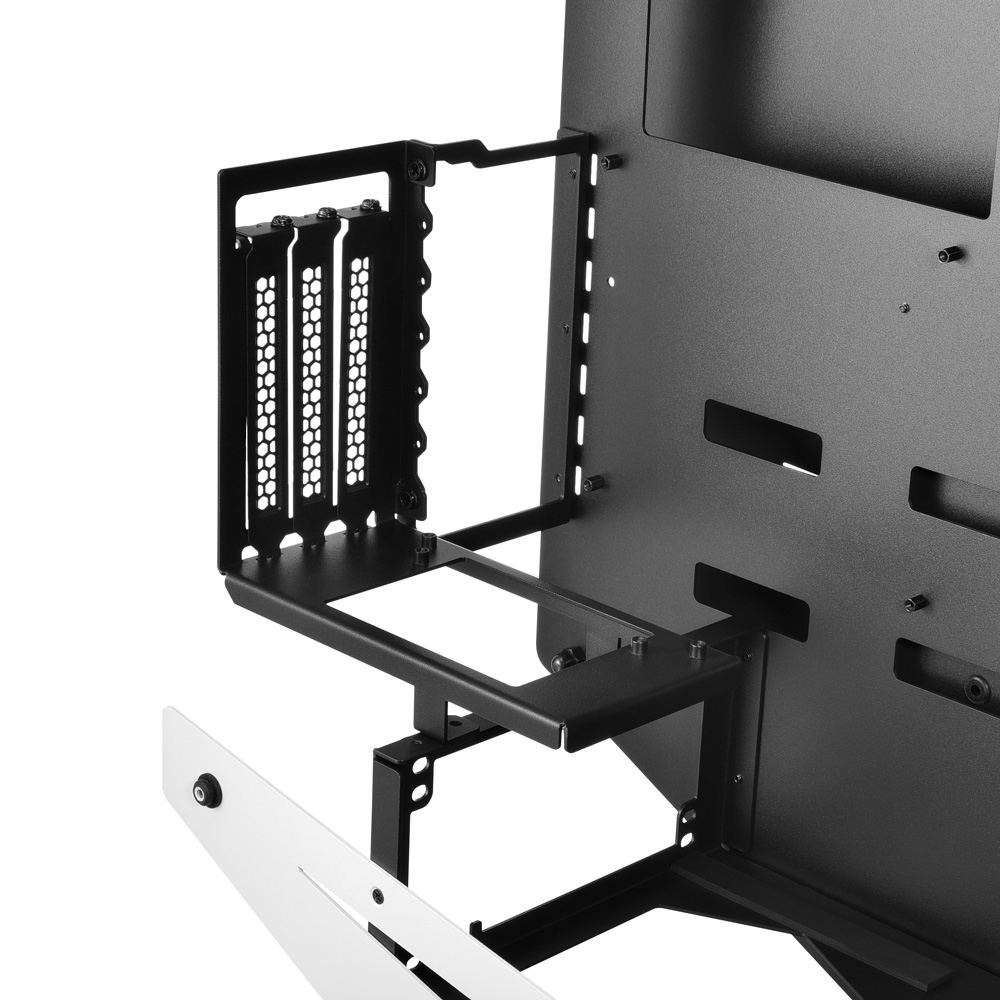

Everything on Board. To ensure that there are no limits when creating your hardware build, the CA700 comes with two mounting frames to vertically install a graphics card: one for cards that require two slots and one for cards that require three slots. Of course, in addition to the two mounting frames, a high-quality riser cable is also included.

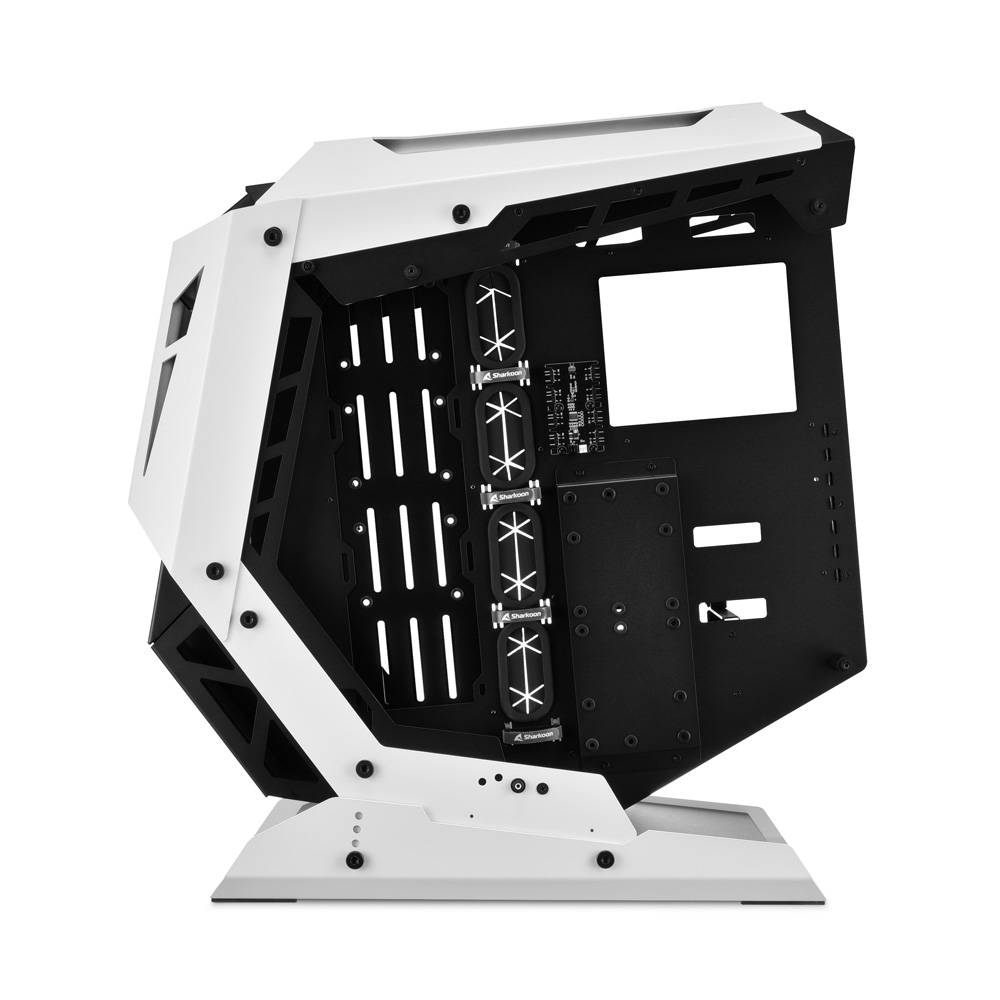

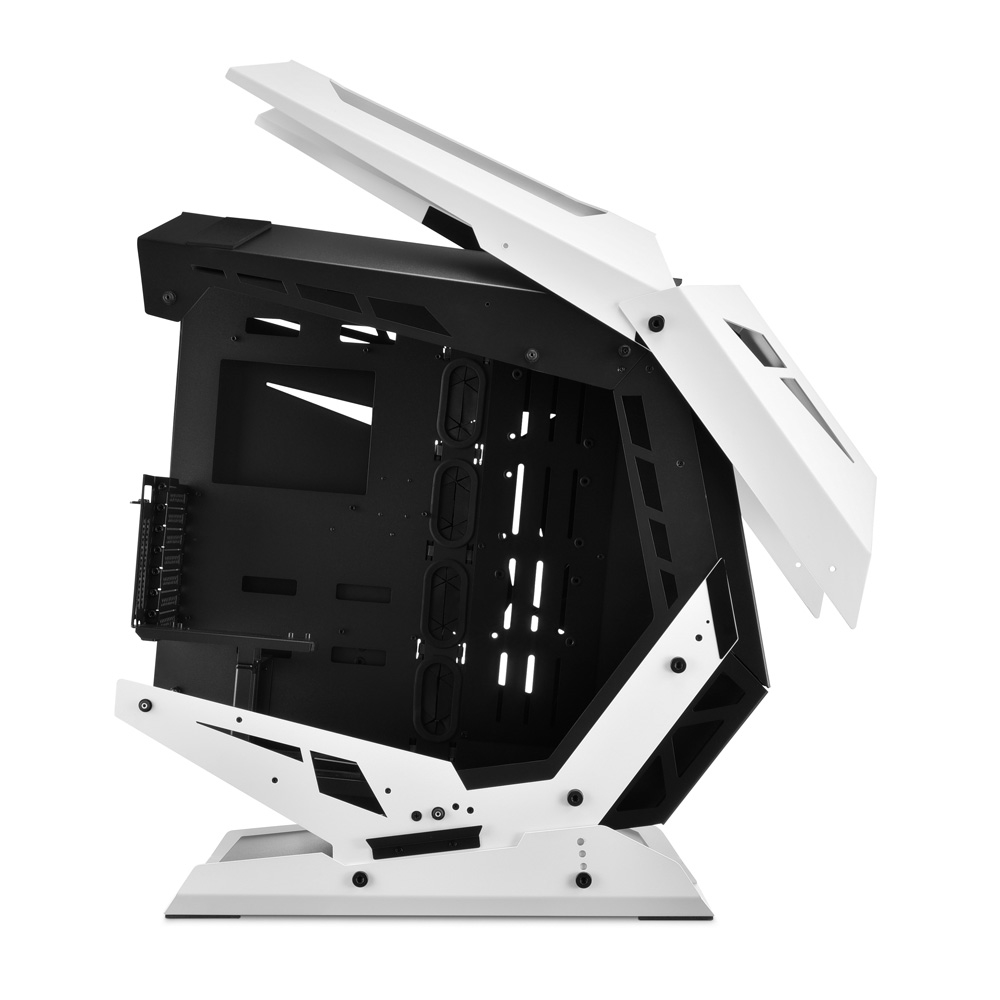

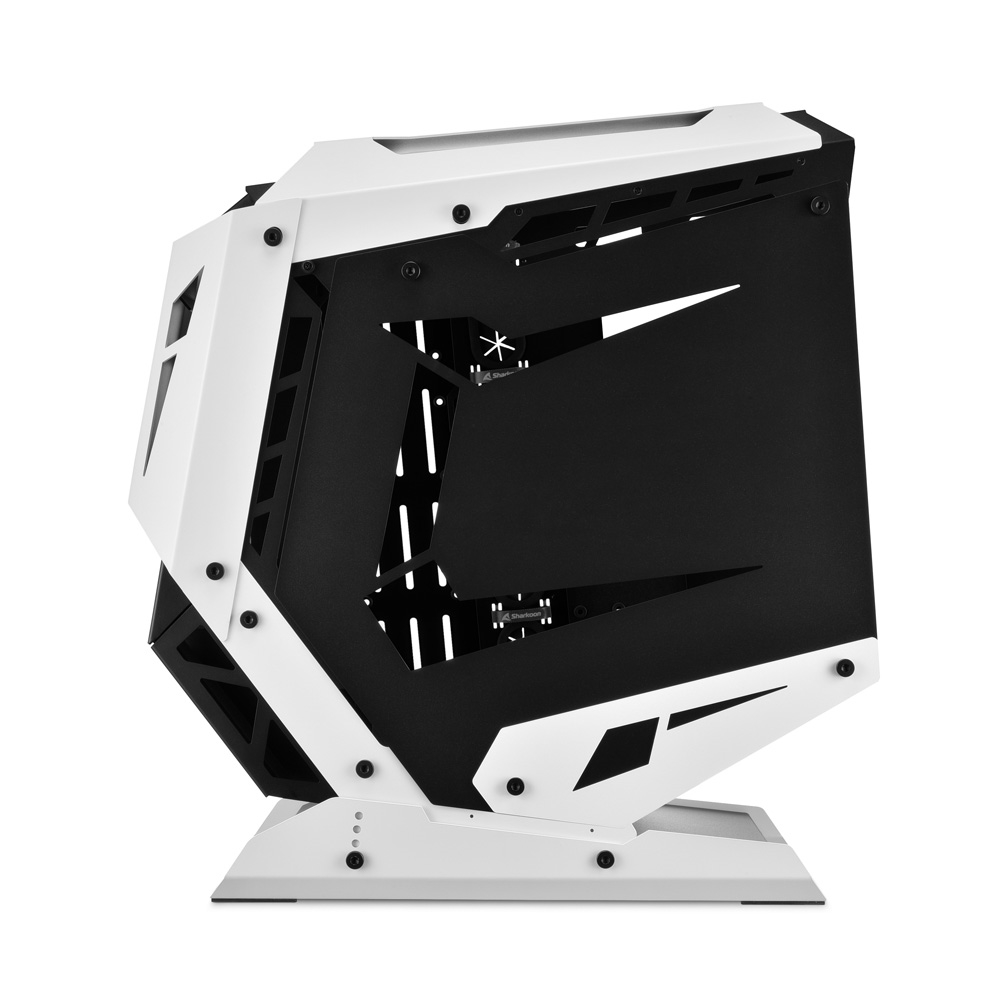

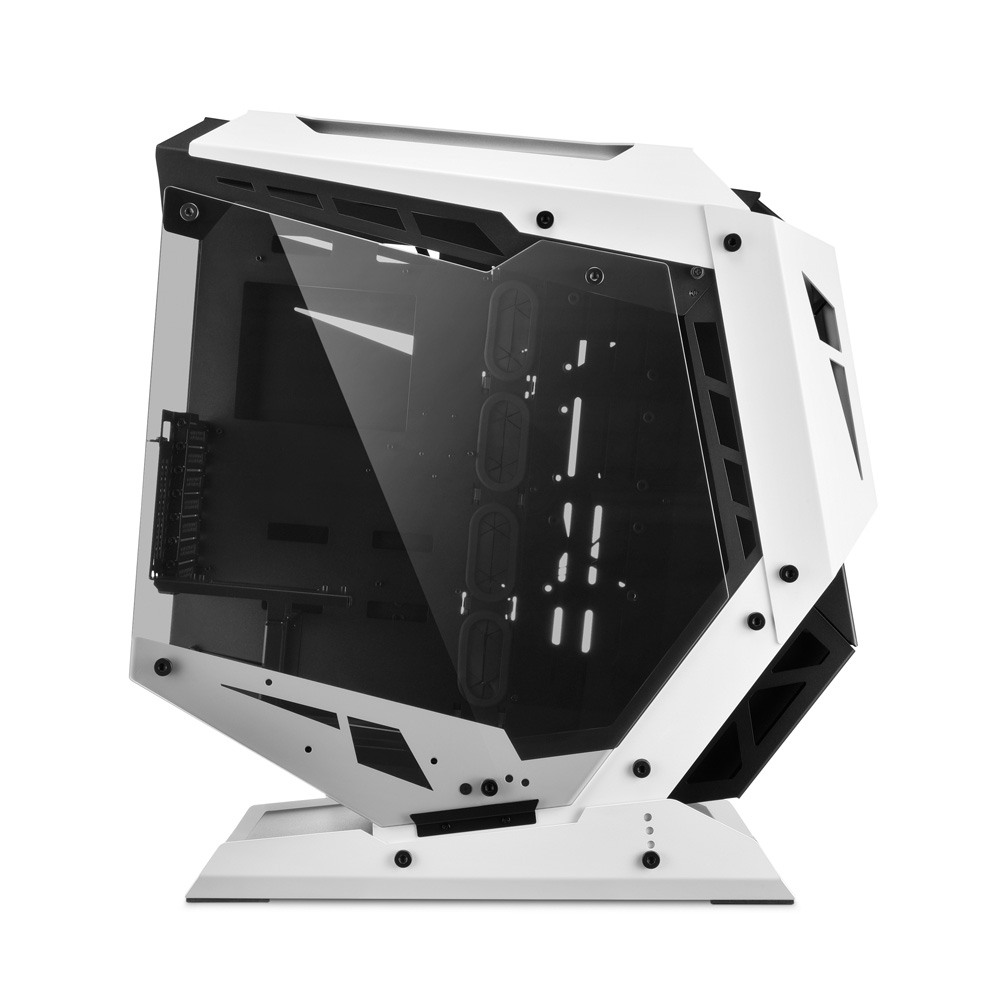

Truly Unique. The ELITE SHARK CA700 impresses with its extraordinary form including its single, large base. The case is therefore not only an eye-catcher in itself, but also offers the option of being tilted and locked in four positions. On the right side of the case, the cables can be easily and cleverly arranged and then concealed behind the side panel. The glass side panel, on the left side, can be easily installed or removed thanks to a mounting bracket which supports the panel from underneath. Protective PTFE pads allow the front panel to be opened smoothly without leaving any scratches on the paintwork. To allow access to the RGB fans, not only the front panel but also the top panel can be opened. These can also be fixed in position using the included hex key. In this way, the panels do not have to be continually held in place, and both hands are free for working on the case and the fans.

A Lot of Space for a Lot of Performance. Large graphics cards up to a length of 47.5 cm can be easily installed without exceeding the limits of the case or restricting the use of the other slots when these are required. Up to two 3.5" HDDs or six 2.5" SSDs can be installed in the CA700, as well as a CPU cooler of up to 16.5 cm.

Compatibility

Mainboard

Mini-ITX, Micro-ATX, ATX

Max. Length Graphics Cards

47.5 cm

Max. Height CPU Cooler

16.5 cm

Max. Length Power Supply

19.5 cm

Max. Height Radiator incl. Fan (Top)

7.0 cm

Max. Height Radiator (Side)

9.0 cm

General

Form Factor:

ATX

Expansion Slots:

7

Interior Painting:

✓

Water Cooling Pump Holder:

✓

Vertical Graphics Card Kit:

✓

Cable Management System:

✓

Side Panel:

Tempered Glass

EAN Code

4044951032112

Package Contents

ELITE SHARK CA700

Accessory Set

Manual

Compatibility

Mainboard:

Mini-ITX, Micro-ATX, ATX

Max. Length Graphics Cards:

47.5 cm

Max. Height CPU Cooler:

16.5 cm

Max. Length Power Supply:

19.5 cm

Max. Height Radiator incl. Fan (Top):

7.0 cm

Max. Height Radiator (Side):

9.0 cm

Fan Configuration

Front Panel:

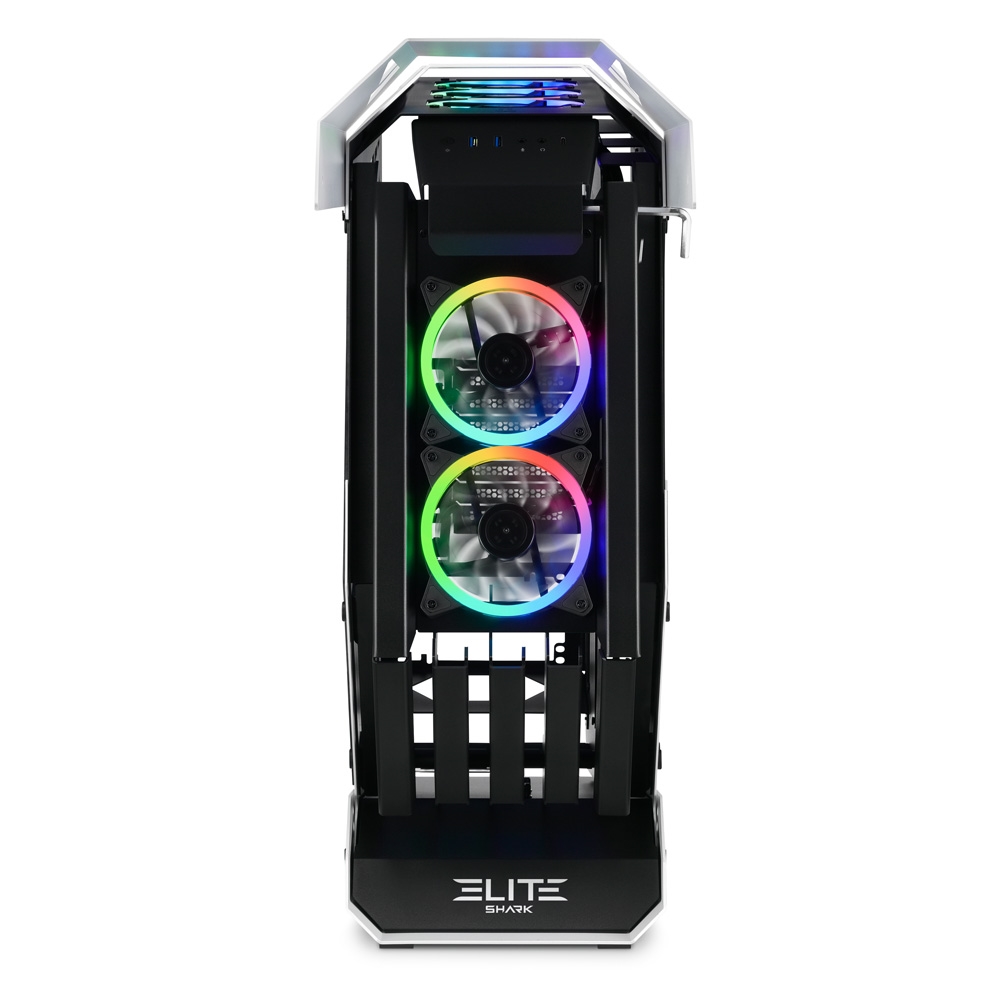

2x 120 mm Addressable RGB LED PWM Fans (Pre-Installed)

Side Panel:

3x 120 mm Fans (Optional) or Radiator (Optional)

Top Panel:

3x 120 mm Addressable RGB LED PWM Fans (Pre-Installed) or Radiator (Optional)

I/O

Type C (USB 3.2 Gen 2):

1

USB 3.0 (Top):

2

Audio (Top):

✓

Max. Drive Bays

3.5":

2

2.5":

6

RGB Compatibility

Type:

Addressable

Ports:

8

Manual Control:

20 Modes

Mainboard Compatibility:

MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync

RGB pinout:

5V-D-G & 5V-D-coded-G

Weight & Dimensions

Dimensions (L x W x H):

63.2 x 25.0 x 67.0 cm
