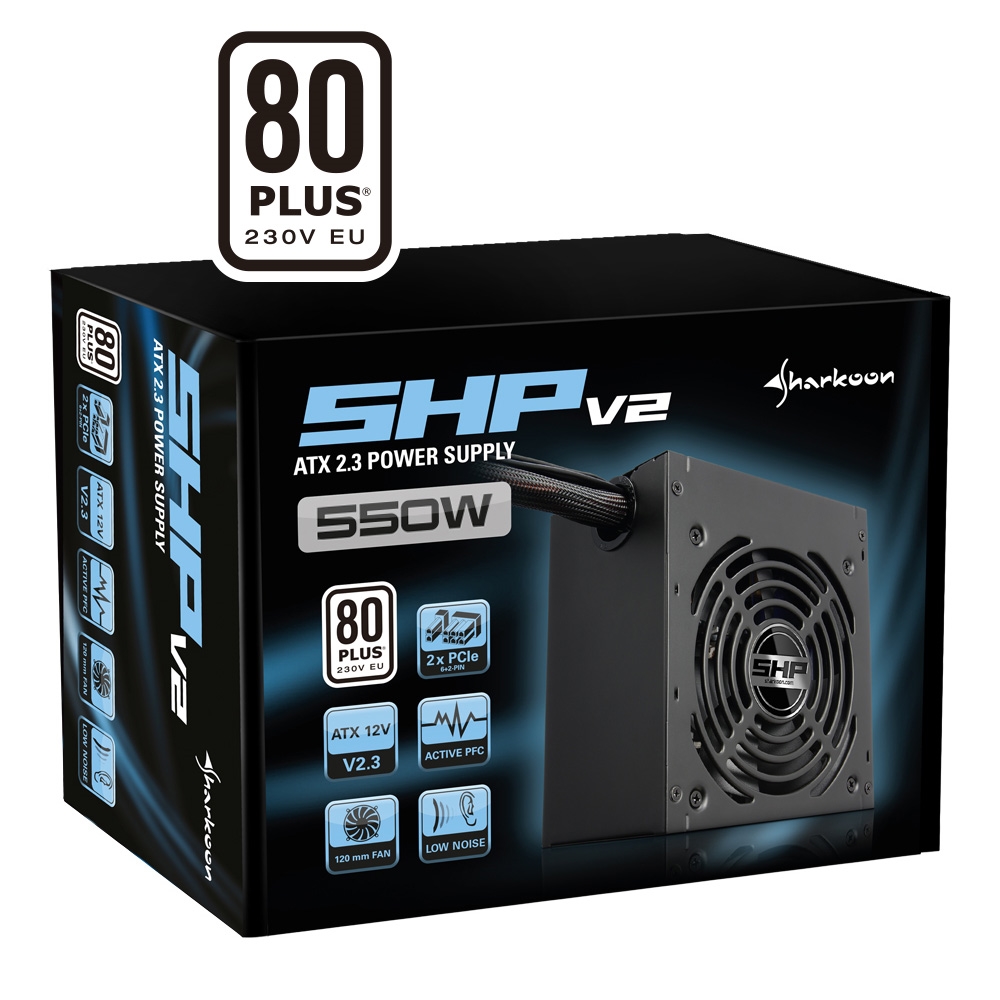

SHARKOON ALIMENTATORE SHP V2 550W, 80 PLUS, ATX

The SHP V2 from Sharkoon is an "80 PLUS" certified all-round power supply, which, due to its unobtrusive, black housing, can be used in any PC for office or multimedia. The black peripheral cables and the mainboard cable sheathed in black all blend in with the unobtrusive design and contribute to a look of uniformity.

Long-Lasting All-Rounder. The Sharkoon SHP V2 offers a long service life and provides a continuous power of 550 to 650 watts with a standby consumption of a maximum of 0.3 watts. Thus, the power supply not only demonstrates endurance, but also shows it can deliver the power which is needed. The SHP V2 can provide up to four SATA drives and three IDE devices with power.

Certified Efficiency. The 120 mm fan of the SHP V2 produces minimal operating noise and allows efficient cooling even at low speeds of rotation. The power supply is certified according to "80 PLUS" load range specifications, providing an energy efficiency of at least 80 % at 20 %, 50 % and 100 % load. The SHP V2 is designed for longevity and as a reliable energy supply, providing a constant and low-interference voltage with minimal generation of noise and heat during operation.

General

80 PLUS Certification:

White 230V EU

Form Factor:

ATX 2.3

Continuous Power:

550 Watt

Haswell Ready:

✓

ErP Compliant:

✓

Active PFC:

✓

Technology:

AC/DC

MTBF:

Min. 100,000 Hours

Operating Temperature:

0 °C - 40 °C

Standby Power Consumption:

Max. 0.3 W

Weight incl. Fixed Cables:

1.4 kg

Dimensions (L x W x H):

140 x 150 x 86 mm

Housing Color:

Black

Input

Voltage:

200 - 240 VAC

Frequency:

47 - 63 Hz

Input Current (110/230 V):

-/4 A

Output

12 V Rail(s):

1

Load 3.3 V:

18 A

Load 5 V:

18 A

Max. Combined Power 3.3 V + 5 V:

110 W

Load 12 V1:

42 A

Max. Combined Power 12 V:

504 W

Load 5 VSB:

2.5 A

Load -12 V:

0.3 A

Cable and Connectors

Cable Configuration:

Fixed

Sleeved Cables:

✓*

Maximum Cable Length:

90 cm

Length of Mainboard Cable:

45 cm

Length of CPU Cable:

45 cm

Length of PCIe Cable:

45 cm

Cable Length to First Peripheral:

45 cm

20+4-Pin Mainboard Connector:

1

4+4-Pin CPU Connector:

1

6+2-Pin PCIe Connector:

2

SATA Connector:

4

IDE Connector:

3

Floppy Connector:

1

Fan

Fan Size:

120 mm

Bearing Type:

Sleeve Bearing

Noise Level at 20% Load:

20.39 dB(A)

Noise Level at 50% Load:

20.39 dB(A)

Noise Level at 100% Load:

28.65 dB(A)

Protections

OVP (Over Voltage Protection):

✓

UVP (Under Voltage Protection):

✓

SCP (Short Circuit Protection):

✓

OPP (Over Power Protection):

✓

Safety Certifications

CE:

✓

CB:

✓

Package Contents

SHP550 V2

Power Cord

Mounting Screws

Manual

Note

* ATX cable only

EAN Code

4044951019779
