Codice: 000006729

Prezzo: € 179,00

CPU

  • Supports 12th Gen Intel® Core™ Processors
  • Processor socket LGA1700
  1. Please go to www.msi.com to get the newest support status as new processors are released.

CHIPSET

Intel® B660 Chipset

MEMORY

  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4000+ MHz
    • 2DPC 1R Max speed up to 4000+ MHz
    • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memoryy
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 2x PCIe x16 slots
    • PCI_E1 (From CPU)
      • Support PCIe 4.0 x16
    • PCI_E3 (From B660 chipset)
      • Support PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (Fom B660 chipset)

ONBOARD GRAPHICS

  • 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2
  • 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio

STORAGE

  • 4x SATA 6Gb/s ports (From B660 chipset)
  • 2x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B660 chipset)
      • Supports up to PCIe 4.0 x4
      • Supports up to SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Supports Intel® Optane™ Memory
  • Support Intel® Smart Response Technology for Intel Core™ processors
  1. SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

  • 1x Realtek® RTL8125BG 2.5Gbps LAN controller

WI-FI & BLUETOOTH®

Intel® Wi-Fi 6

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2

POWER CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector

INTERNAL USB CONNECTORS

  • 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
  • 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074)
    • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From B660 chipset)
    • Supports additional 4 USB 2.0 ports

FAN CONNECTORS

  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors

SYSTEM CONNECTORS

  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Tuning Controller connector
  • 1x TBT connector (supports RTD3)
  • 1x Serial port

JUMPERS

  • 1x Clear CMOS jumper

LED FEATURES

  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

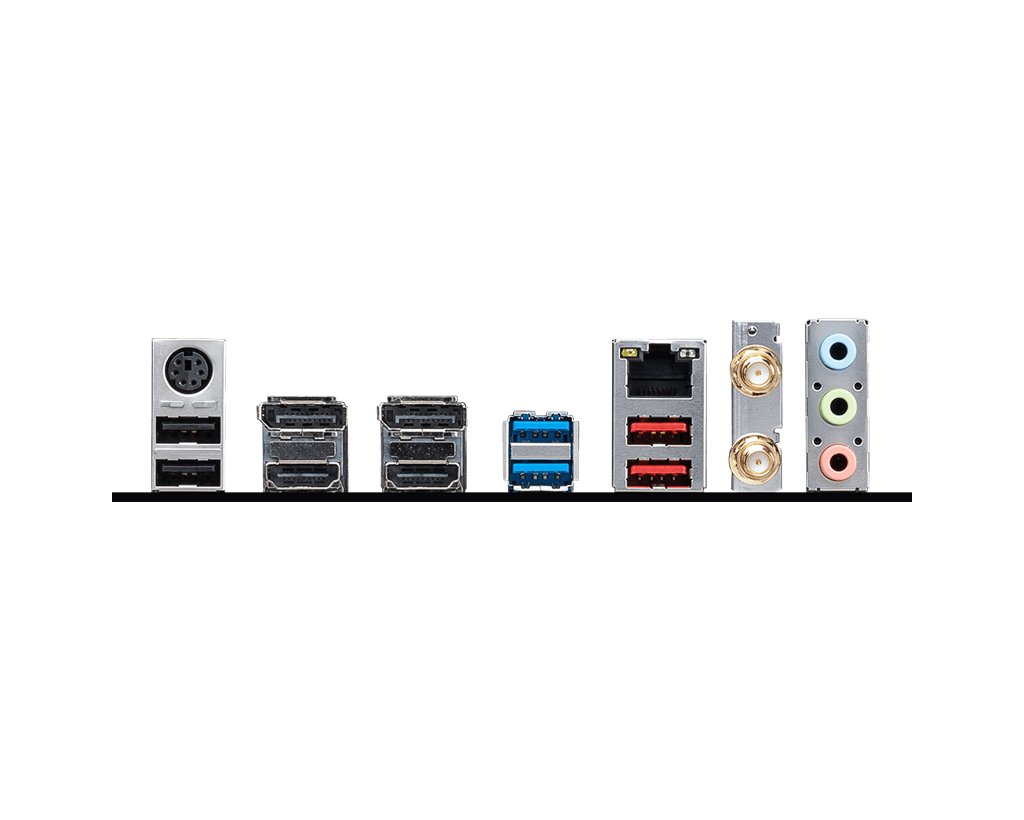

BACK PANEL PORTS

  1. Keyboard / Mouse
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps Type-A
  4. LAN port
  5. Wi-Fi / Bluetooth
  6. Audio connector
  7. USB 2.0
  8. HDMI
  9. USB 3.2 Gen 2 10Gbps Type-A

DIMENSIONS

  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
