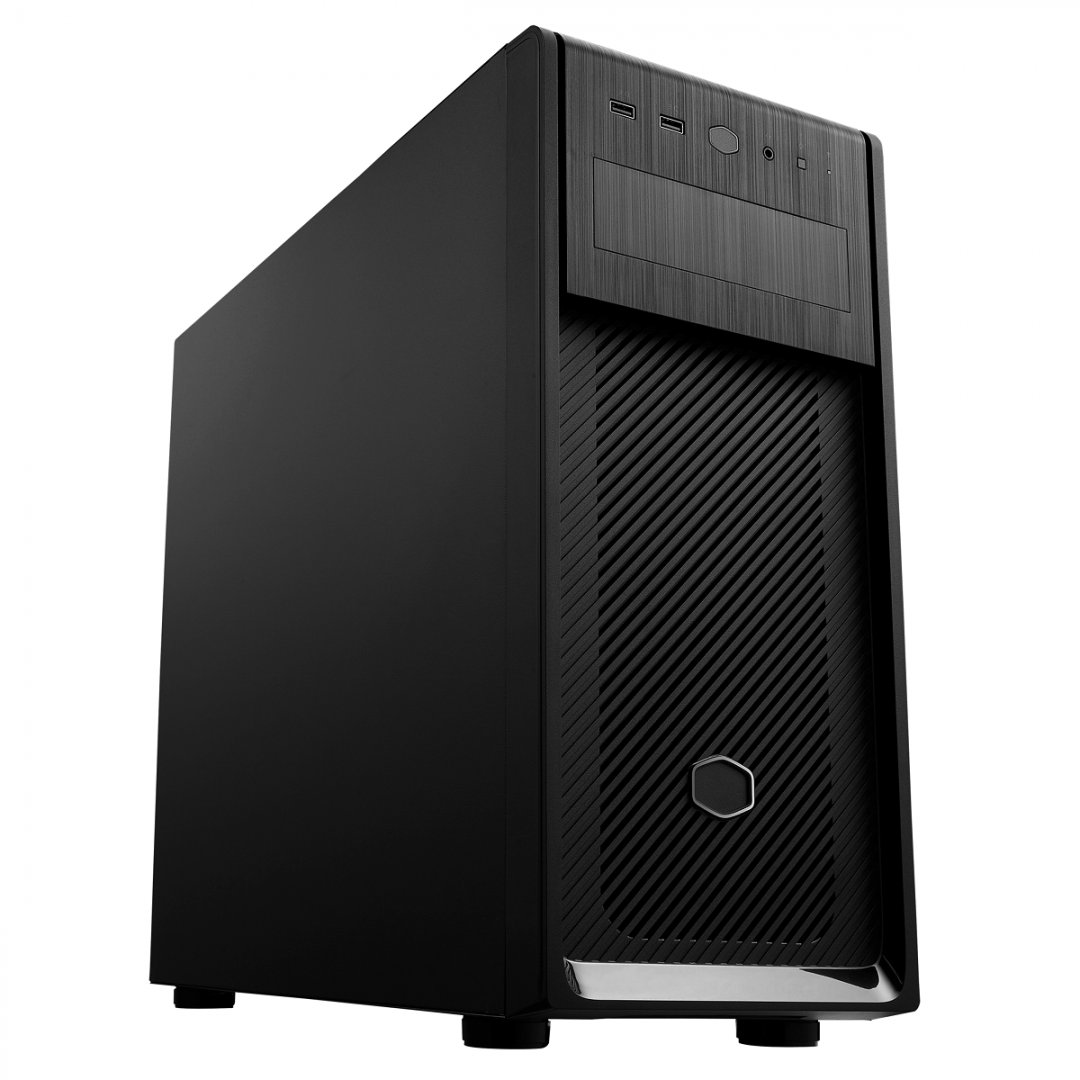

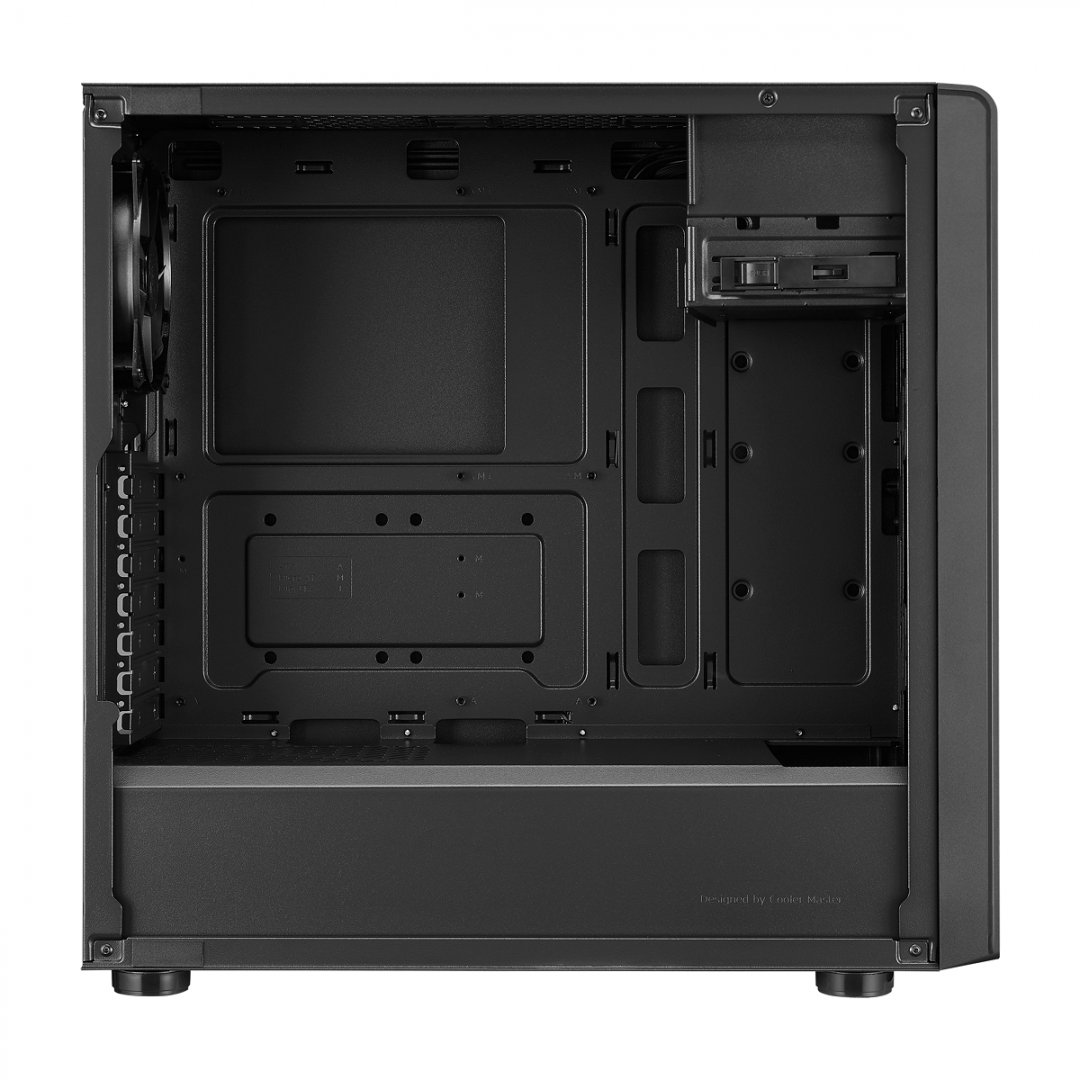

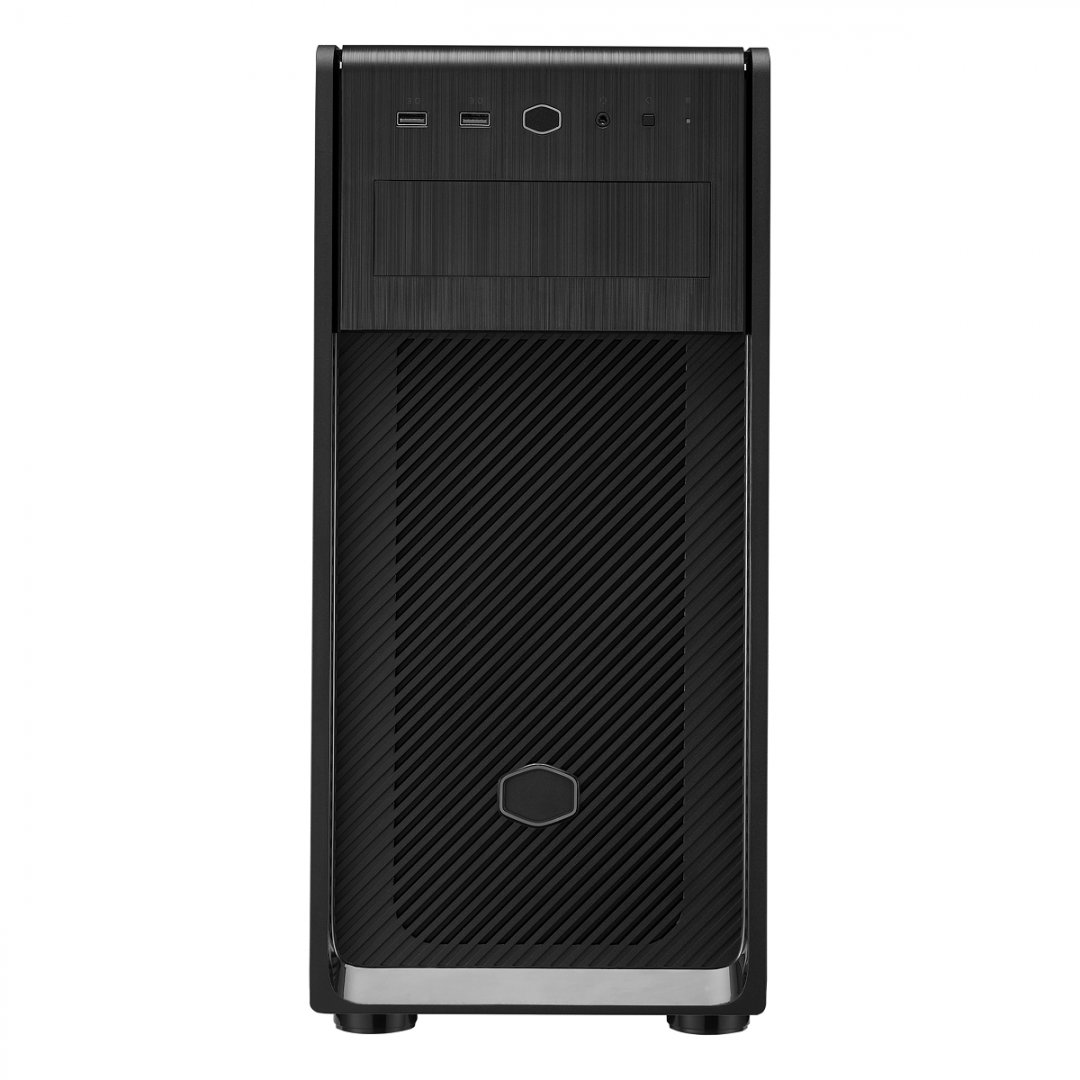

Cooler Master Elite 500 ODD

Codice: 000006224

Prezzo: € 70,00
SERIES
Elite Series
SIZE
Mid Tower
MODEL NUMBER
E500-KG5N-S00 (TG, ODD)
AVAILABLE COLOR(S)
Black
MATERIALS
Steel, Plastic, Tempered Glass
DIMENSIONS (L X W X H)
464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)
VOLUME (EXLC. PROTRUSIONS)
42.40L (E500-KG5N-S00, E500-KN5N-S00)
MOTHERBOARD SUPPORT
Mini ITX, Micro ATX, ATX
EXPANSION SLOTS
7
5.25" DRIVE BAYS
1 (E500-KG5N-S00, E500-KN5N-S00)
2.5" / 3.5" DRIVE BAYS (COMBO)
2
2.5" DRIVE BAYS
5 (E500-KG5N-S00, E500-KN5N-S00)
I/O PANEL
2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
PRE-INSTALLED FANS - REAR
1x 120mm
FAN SUPPORT - TOP
2x 120mm, 2x 140mm
FAN SUPPORT - FRONT
2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)
FAN SUPPORT - REAR
1x 120mm
RADIATOR SUPPORT - TOP
120 / 240mm (32mm max motherboard component height)
RADIATOR SUPPORT - FRONT
120mm, 140mm, 240mm, 280mm, 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)
RADIATOR SUPPORT - REAR
120mm
CLEARANCE - CPU COOLER
TG: 161mm, Steel: 163mm
CLEARANCE - PSU
180mm (E500-KG5N-S00, E500-KN5N-S00)
CLEARANCE - GFX
350mm (w/o front fans & radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans & radiator) (E500-KG5N-S00, E500-KN5N-S00)
CABLE ROUTING
18.5mm
DUST FILTERS
Front, Top, Bottom
POWER SUPPLY SUPPORT
Bottom mount, ATX
WARRANTY
2 years
